- Product model
- characteristics
- Package size

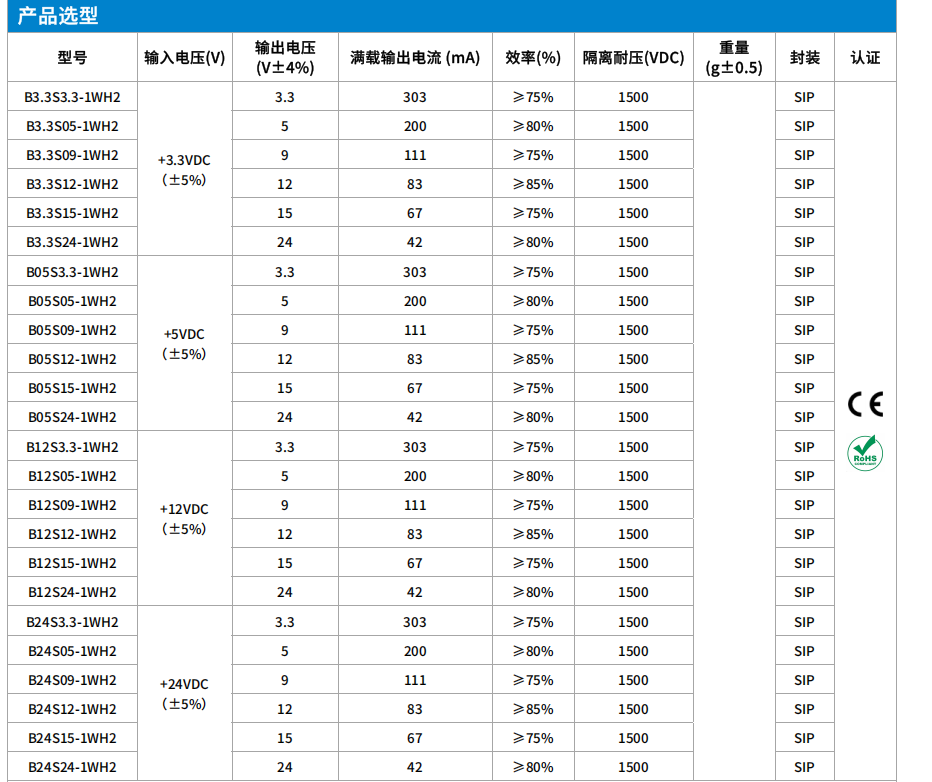

| 产品型号 | 功率 | 输入电压 （V） | 输出电压 (Vo±4%） | 满载输出电流 (mA) | 隔离电压 | 认证 |
| B05S3.3-1WH2 | ≥72% | +5VDC ±5% | 3.3VDC | 303 | 1500VDC(SIP) | RoHS |
| B05S05-1WH2 | ≥72% | +5VDC ±5% | 5VDC | 200 | 1500VDC(SIP) | RoHS |
| B05S09-1WH2 | ≥72% | +5VDC ±5% | 9VDC | 111 | 1500VDC(SIP) | RoHS |
B05S12-1WH2 | ≥75% | +5VDC ±5% | 12VDC | 83 | 1500VDC(SIP) | RoHS |
B05S15-1WH2 | ≥75% | +5VDC ±5% | 15VDC | 67 | 1500VDC(SIP) | RoHS |
B05S24-1WH2 | ≥78% | +5VDC ±5% | 24VDC | 42 | 1500VDC(SIP) | RoHS |
B12S3.3-1WH2 | ≥72% | +12VDC ±5% | 3.3VDC | 303 | 1500VDC(SIP) | RoHS |
B12S05-1WH2 | ≥72% | +12VDC ±5% | 5VDC | 200 | 1500VDC(SIP) | RoHS |
B12S09-1WH2 | ≥72% | +12VDC ±5% | 9VDC | 111 | 1500VDC(SIP) | RoHS |
B12S12-1WH2 | ≥75% | +12VDC ±5% | 12VDC | 83 | 1500VDC(SIP) | RoHS |
B12S15-1WH2 | ≥75% | +12VDC ±5% | 15VDC | 67 | 1500VDC(SIP) | RoHS |
B12S24-1WH2 | ≥78% | +12VDC ±5% | 24VDC | 42 | 1500VDC(SIP) | RoHS |
B24S3.3-1WH2 | ≥72% | +24VDC ±5% | 3.3VDC | 303 | 1500VDC(SIP) | RoHS |
B24S05-1WH2 | ≥72% | +24VDC ±5% | 5VDC | 200 | 1500VDC(SIP) | RoHS |
B24S09-1WH2 | ≥72% | +24VDC ±5% | 9VDC | 111 | 1500VDC(SIP) | RoHS |
B24S12-1WH2 | ≥75% | +24VDC ±5% | 12VDC | 83 | 1500VDC(SIP) | RoHS |
B24S15-1WH2 | ≥75% | +24VDC ±5% | 15VDC | 67 | 1500VDC(SIP) | RoHS |
B24S24-1WH2 | ≥78% | +24VDC ±5% | 24VDC | 42 | 1500VDC(SIP) | RoHS |
* The above product parameters are for reference only. Please refer to the technical specifications for detailed technical parameters
.0.1W-1WH2 NON-ISOLATION DC DC
.SIP/DIP
.Storge temperature: -40℃~+125℃
.Shell: High inflaming retarding plastic(UL94-V0)
.Mean Time Between Failures(MTBF):2000000h
.Operating temperature: -40℃~+85℃
BXXSXX-1WH2系列（SIP/DIP） 11.60×6.00×10.00（mm）
