.0.1W-1WH2 NON-ISOLATION DC DC

.SIP/DIP

.Storge temperature: -40℃~+125℃

.Mean Time Between Failures(MTBF):2000000h

.Operating temperature: -40℃~+85℃

.Max Operating temperature: 85℃, relative temperature: 10%~90%

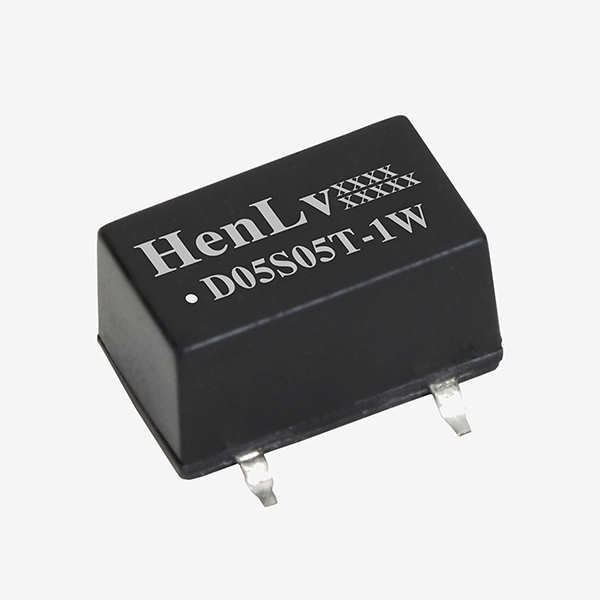

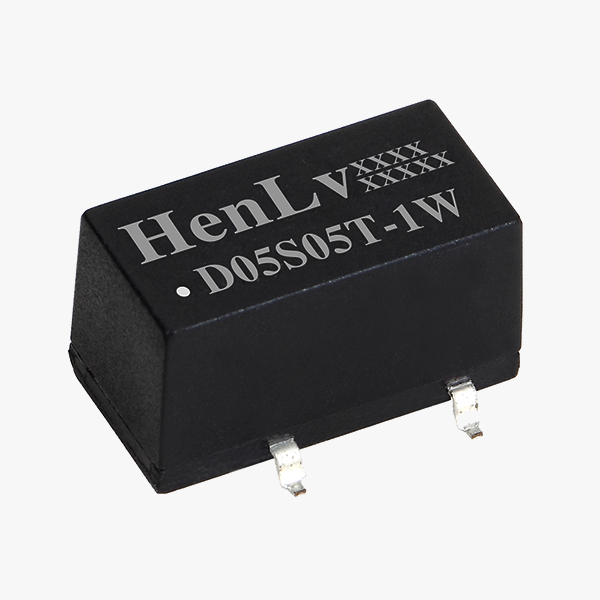

.1W  (SMD) DC DC

· Output ripple (20MH bandwidth) : 50mVp-p Max;

· Output noise (20MH bandwidth) : 100mVp p Max;

· Input voltage: 5VDC+ 5%

· Output voltage: +5VDC±4%

· Output current: +0.2A Max

· Operating temperature range: -40°C~ +85°C

· Output characteristics: Load effect: ≤±2%, 10%~100% load

· Temperature coefficient :≤± 02% ° C

· Mean time to failure (MTBF): 20,00h

· Bare board

.Double row upright (DIP) encapsulation

.Storge temperature: -40℃~+125℃

.Shell: Metal shell package

.Mean Time Between Failures(MTBF):3000000h

.Working temperature: - 40 ℃ ~ + 85 ℃

.Maximum working temperature: 85 ℃, relative humidity: 10% ~ 90%

· The input voltage: 18 VDC ~ 26 VDC

· + 24 VDC input current, input voltage: : + 1 a Max

· Input signal: 0-24 v - (0 v) low level effectively, can be hung up.

· Input impedance: 50-1 k 0 hm

· Output: 0 ff: 24 v ON: 0 v

· the output current capacity: 0-5 a (single largest 10 a current capacity)

· Wide working temperature range: to 40 ° C to + 85 ° C

· Isolation voltage 3000/4000 vac 5 ma 1 minute

· High flame retardant, metal aluminum shell/copper shell encapsulation

· Conform to the RoHS directive

· cooling method: natural cooling
