GK220S_-15W | ||||||
型号 | 输入电压 (VAC) | 输出电压 (V±2%) | 满载输出电流 (A) | 效率(%) | 隔离耐压(VDC) | 认证 |

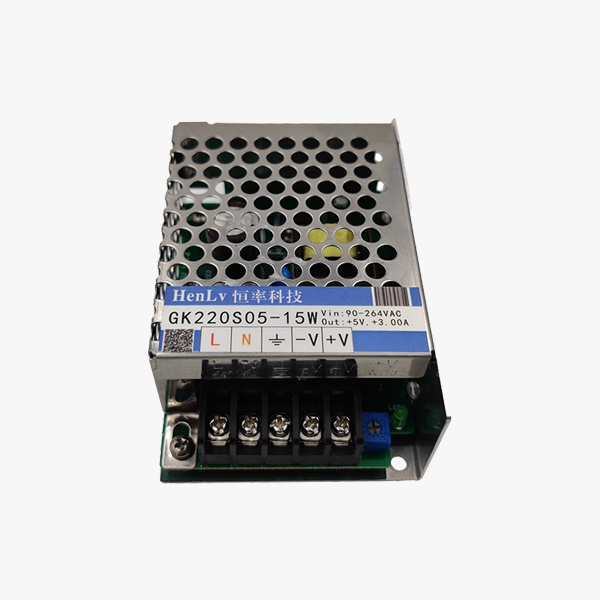

GK220S05-15W | 90-264VAC | 5V | 3A | 80% | 3000VDC | ROHS |
GK220S12-15W | 90-264VAC | 12V | 1.25A | 80% | 3000VDC | ROHS |
GK220S15-15W | 90-264VAC | 15V | 1A | 80% | 3000VDC | ROHS |
GK220S24-15W | 90-264VAC | 24V | 0.63A | 80% | 3000VDC | ROHS |
GK220S36-15W | 90-264VAC | 36V | 0.42A | 80% | 3000VDC | ROHS |
GK220S48-15W | 90-264VAC | 48V | 0.31A | 80% | 3000VDC | ROHS |
* 上方产品参数仅供参考,详细技术参数请以技术规格书为准
· 输出纹波(20MH带宽) :120mVp- p Max;
· 输出噪声(20MH带宽) :240mVp p Max;
· 输入电压: 90 -264VAC, 120 -370VDC
· 输出电压: +12. 0VDC±2%
· 输出电流: +1.3A Max
· 工作温度: -20*C~+60°C 存储温度: - -40°C^ +85°C
· 输出特性:负载效应: ≤±2% 10%~100%负载· 温度系数:≤±0. 02%摄氏度
· MTBF : 200000h
GK220S12-15W系列 84.00x58.00x38.00mm
